ComboCare™ Clinical Electrotherapy & Ultrasound Unit

SKU: DQ7844
$1,200.00


-
+

The ComboCare™ E-Stim and Ultrasound Combo Professional Device is a wonderful addition to the Roscoe Medical line of professional therapy systems.

This microprocessor controlled unit combines clinical ultrasound therapy with five different electrotherapy treatment waveforms:

  • Interferential (IF) 4-Pole
  • Interferential (IF) 2-Pole
  • Russian Stim - Medium Frequency
  • EMS/NMES
  • TENS


A true feature-rich, quality product at an affordable price, the ComboCare includes a large, easy-to-read LCD panel, allowing the clinician to quickly set up treatment parameters. A dual frequency 5cm2 soundhead comes standard with each unit. Its portable design also lets you take it to your patient or keep it at the clinic. The device is very easy to use, and allows the patient to start treatment right away. The advanced operating system ensures a complete range of therapy no matter where you use it.

Product Features:

  • Portable therapy - provide ultrasound and e-stim simultaneously; great for treating trigger points
  • Two channels of electrical stimulation output
  • Large easy-to-read graphical LCD display with exact dial performance and programmable timer
  • Waveforms include TENS, EMS, 2-Pole Interferential, 4-Pole Inteferential, and Russian Stim

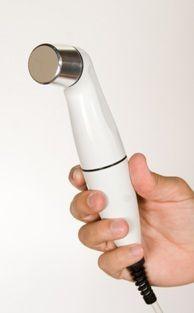

  • Dual clinical ultrasound features a 5 cm² sound head which offers 1 MHz and 3 MHz frequencies
  • Ultrasound has 10% - 100% duty cycle selections
  • 10 presets per waveform totaling 50 in all
  • 20 ultrasound presets
  • User defined memory positions for user protocols

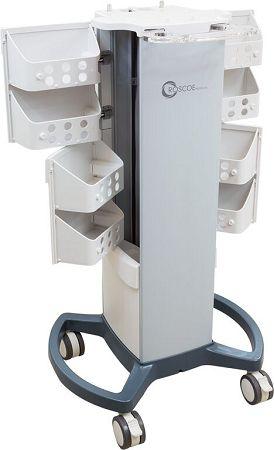

  • Designed for tabletop, therapy cart, or mobile use

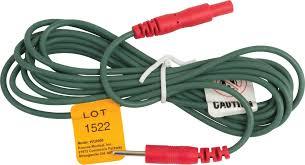

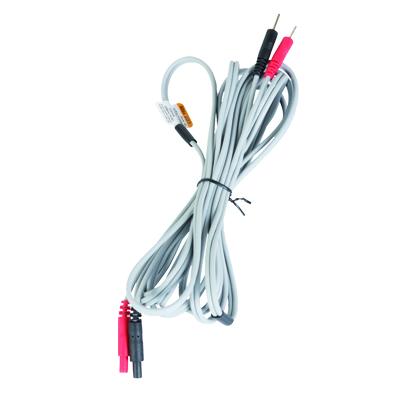

  • Includes eight sets of self-adhesive electrodes, eight sets of rubber electrodes with sponges, eight elastic straps, four sets of lead wires, and a User Manual
  • Two Year Manufacturer Warranty


Product Specifications:

  • Waveform: IF-4P, IF-2P, TENS, EMS, Russian
    • Mono- or Bi-Phasic Square
  • Pulse Width: 30-400µS
  • Frequency:
    • 1 MHz & 3 MHz for Ultrasound
    • 1-250 Hz for TENS & EMS
    • Beat Frequency for IF: 1-150 Hz
    • Carrier Frequency for IF: 4 KHz
    • Carrier Frequency for Russian: 2.5 KHz
  • Intensity:
    • Max 3.0W/cm2 for Ultrasound;
    • 0-50mA for IF (at 1K ohm load)
    • 0-100mA for TENS & EMS (at 1K ohm load)
  • Treatment Time:
    • Max 30 minutes for Ultrasound
    • 1-60 minutes for electrotherapy modalities
  • Dimensions: 10.5" (W) x 15" (L) x 8" (H)
  • Weight: 6.7 lbs.

*Please Remember To Purchase Ultrasound Gel For This Product - Click HERE

User Manual:
